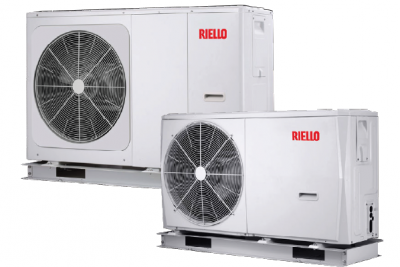

Riello NXHM Monobloc Air Source Heat Pump

Riello NXHM Monobloc Air Source Heat Pump

Outputs (kW): 4 – 6 – 8 – 10 – 12 – 14 – 16

The Riello NXHM air source heat pumps are ideal for new build and retrofit applications, and with their minimal installation preparation they are an increasingly popular renewable technology. Utilising ambient air and upgrading it to a more useful temperature between 35°C and 65°C (1) makes NXHM a perfect solution for underfloor heating systems, oversize radiators, domestic hot water and heating swimming pools.

NXHM heat pumps have a coefficient of performance of up to 5.1 (1kW of electricity used to generate 5.1kW of heat). It is supplied with built-in external sensor, supplementary external sensor and remote control to maximise efficiency.

The new NXHM supplied with R32 refrigerant helps the unit operate more sustainably and effectively. Thanks to lower Global Warming Potential (GWP) and reduced charge volume, R32 provides the perfect solution being not only more environmentally friendly having lower CO2 emissions but also higher energy efficiency in comparison with standard refrigerant e.g. R410A.

(1) Outside air temperature 7°C DB, 6°C WB; water inlet/outlet 30/35°C
(2) Outside air temperature 7°C DB, 6°C WB; water inlet/outlet 40/45°C
(3) Outside air temperature 7°C DB, 6°C WB; water inlet/outlet 47/55°C
(4) Outside air temperature 35°C; water inlet/outlet 23/18°C
(5) Outside air temperature 35°C; water inlet/outlet 12/7°C
(6) Value referring to the average climatic profile for a 35°C delivery temperature. Values complying with regulation 811/2013
(7) Value referring to the average climatic profile for a 55°C delivery temperature. Values complying with regulation 811/2013
(8) Measured at a position 1m in front of the unit and (1+unit height)/2m above the floor in semi-anechoic chamber
(9) Declared value in compliance with the EN 12102-1
